RELAX 5080

Electronic Birthing Bed

Facts

  • 3 motors
  • Electronic headboard, height adjustments
  • Trendelenburg and Reverse Trendelenburg

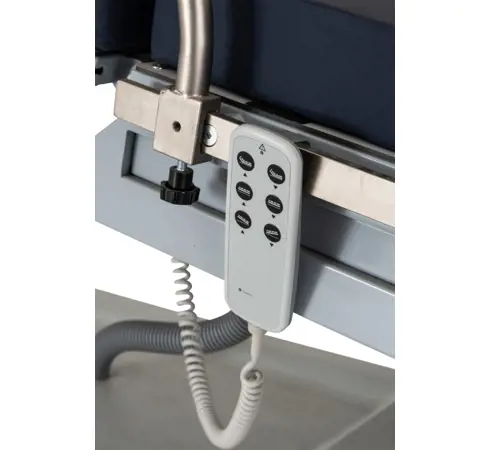

  • Hand remote control
  • Anti-microbial, water proof, flame retardant, air permeable mattress
  • Removable footrest mattress
  • Stainless steel grab handles
  • Stainless steel waste bin
  • Lockable, concealable, and removable stainless side rails
  • Detachable head board
  • Lockable, adjustable polyurethane leg supports
  • ABS covered sub-frame
  • Stainless steel accessory rails
  • Easily cleanable, compact laminate mattress platform
  • Electrostatic powder coated metal frame
  • Drainage bag hooks at both sides
  • IV pole sockets
  • Height adjustable stainless steel IV pole stand
  • Protective plastic corner bumpers
  • Central lockable single castors
Contact Us
Share on Facebook Share on Linkedin Share on Twitter
Contact Us
Technical Specifications
External Dimensions (ExB) Min. 80x155 cm
Max. 80x187 cm
Mattress Platform 60x168 cm
Backrest and Pelvic section mattress thickness 8 cm
Footboard mattress thickness 12 cm
Underbed Clearance 17 cm
Castor Diameter 150 mm
Mattress Platform Min. and Max. Ground Clearance Min 62 cm Max 91 cm
Maximum Backboard Angle 0° - 70°
Trend. And Reverse Trend. Angle +/- 14°
Bed Weight in Simple Bed Configuration 93 kg
Bed Safe Working Weight 250 kg
Power In Max. 3,15A 100V-240V~50/60 Hz
Electrical Shock Protection Class I, Type B
Liquid Ingress Protection IPx66

Optional Accessories
Accessory trolley (A 9025)
File holder
Support handles
Battery
Foot control pedal
X-ray cassette holder on the back
Manual CPR
Central lockable twin castors (150 mm)
