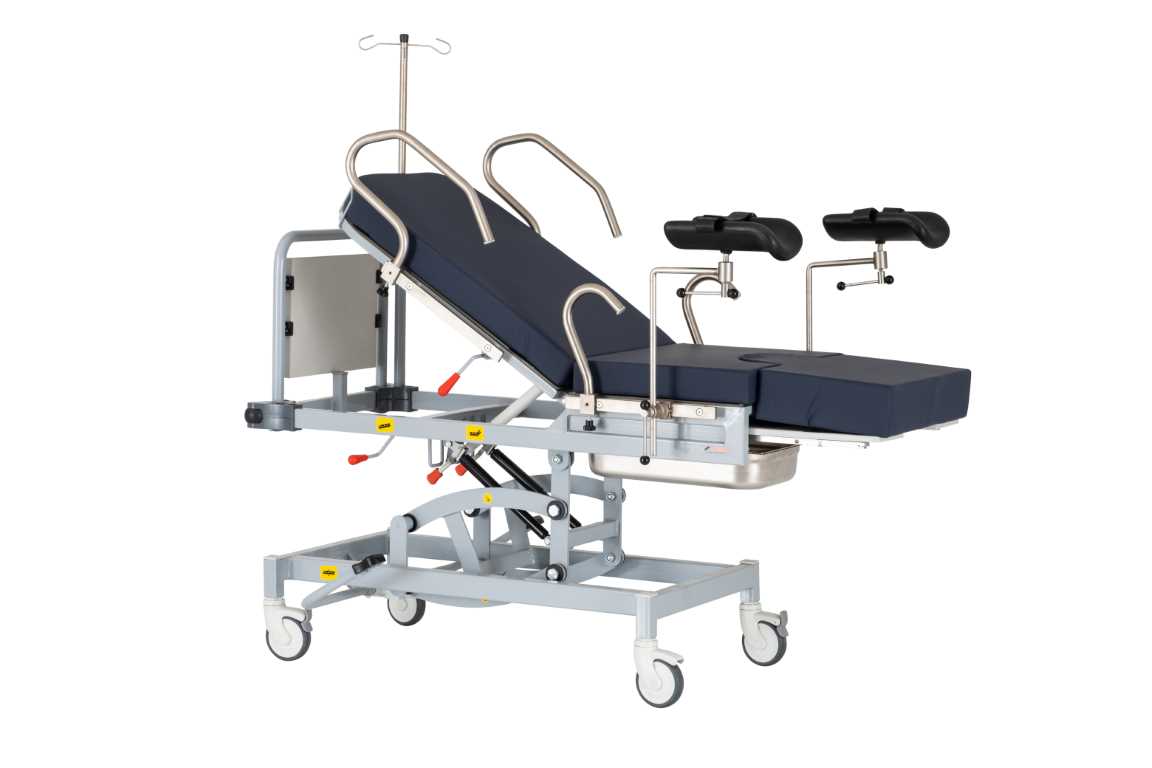

RELAX 1080

Hydraulic Birthing Bed

Facts

  • Shock absorber controlled backboard adjustment
  • Shock absorber controlled trendelenburg and reverse trendelenburg
  • Hydraulic height adjustment by foot pedal
  • Anti-microbial, water proof, flame retardant, air permeable mattress
  • Removable footrest mattress
  • Stainless steel grab handles

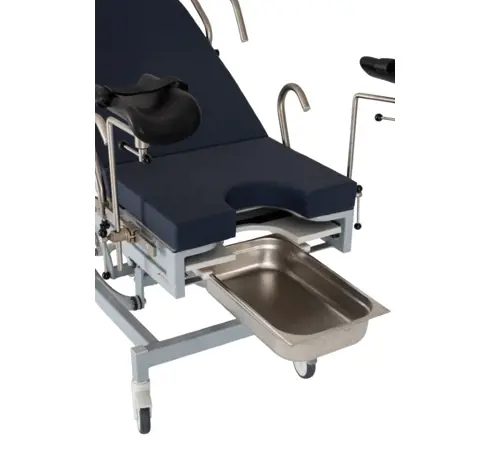

  • Stainless steel waste bin
  • Lockable, concealable, and removable stainless side rails
  • Detachable head board
  • Lockable, adjustable polyurethane leg supports
  • Stainless steel accessory rails
  • Easily cleanable, compact laminate mattress platform
  • Electrostatic powder coated metal frame
  • Drainage bag hooks at both sides
  • IV pole sockets
  • Height adjustable stainless steel IV pole stand
  • Protective plastic corner bumpers
  • Lockable castors
Technical Specifications
External Dimensions (ExB) Min. 80x155 cm Max. 80x187 cm
Mattress Platform 60x168 cm
Backrest and Pelvic section mattress thickness 8 cm
Footboard mattress thickness 12 cm
Underbed Clearance 20 cm
Castor Diameter 125 mm
Mattress Platform Min. and Max. Ground Clearance Min 62 cm Max 91 cm

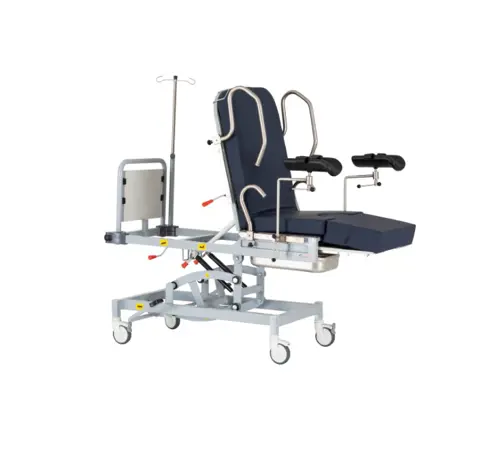

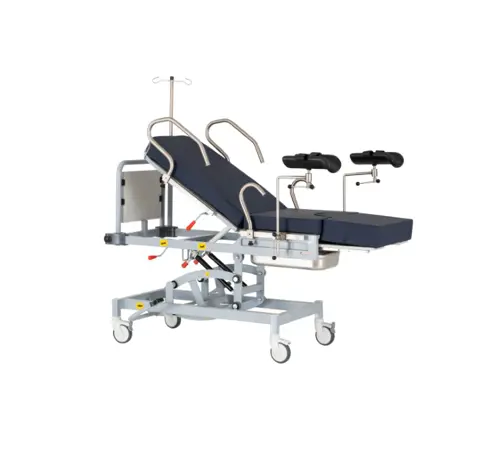

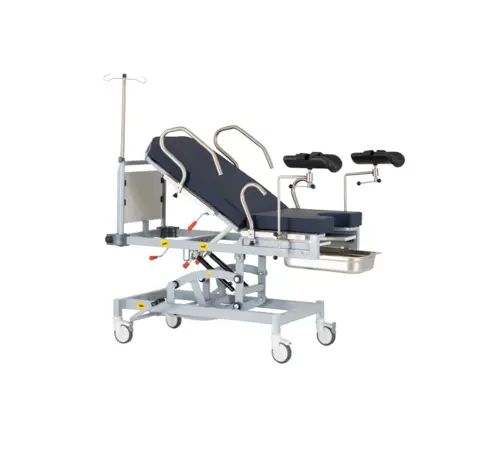

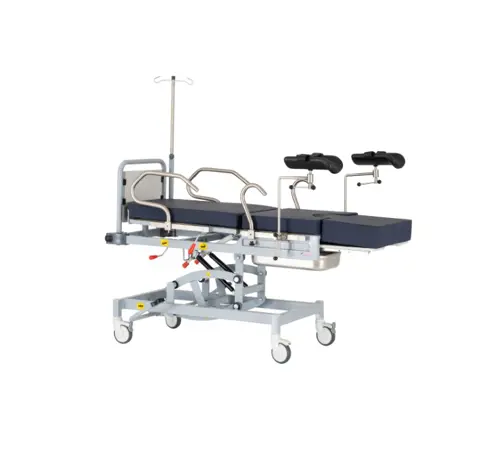

Maximum Backboard Angle 0° - 70°

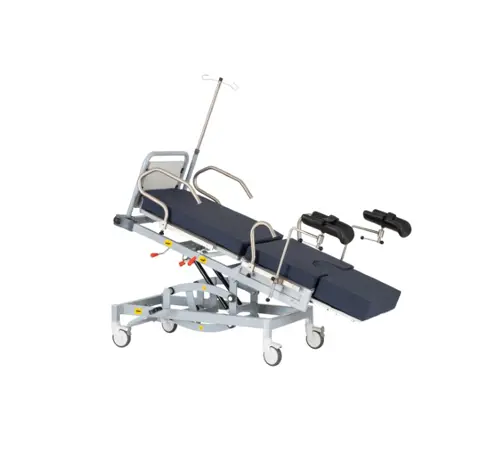

Trend. And Reverse Trend. Angle +/- 15°
Bed Weight in Simple Bed Configuration
Bed Safe Working Weight 250 kg

Optional Accessories
Accessory trolley
Support handles
File holder
Stainless steel accessory rails
