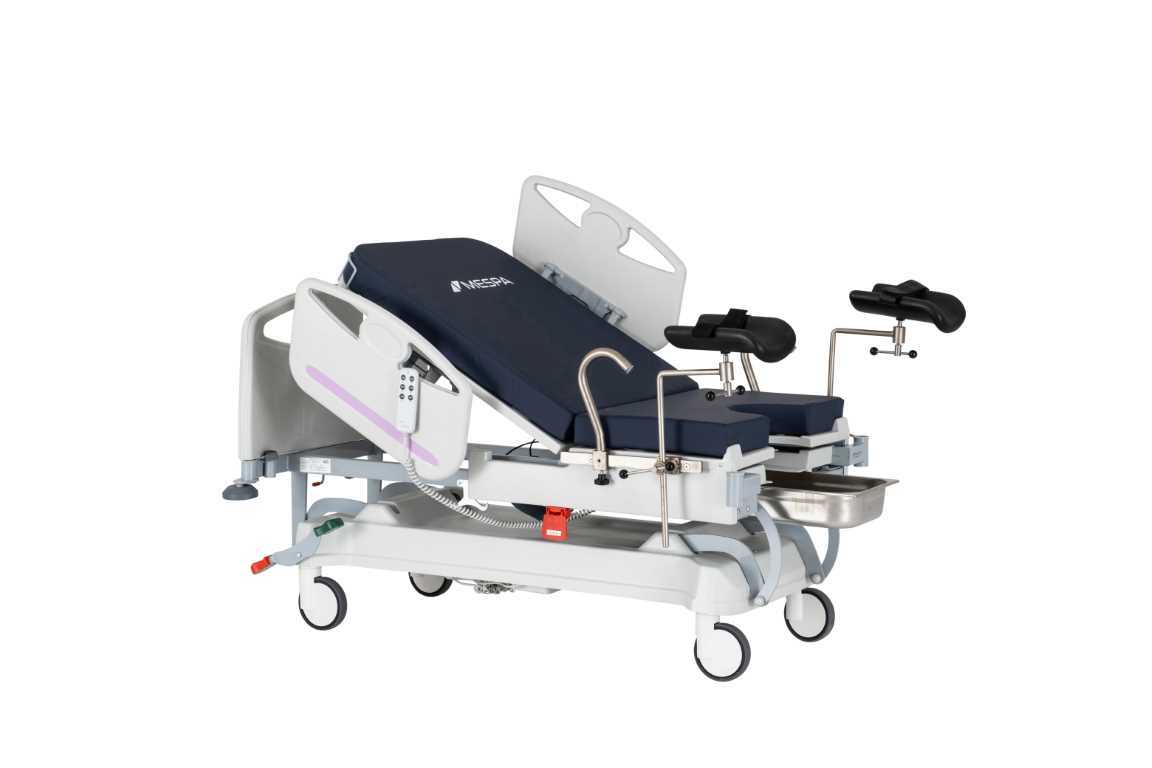

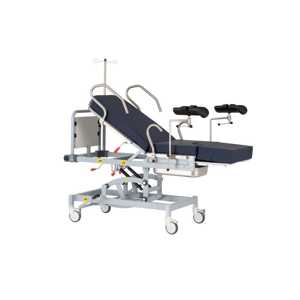

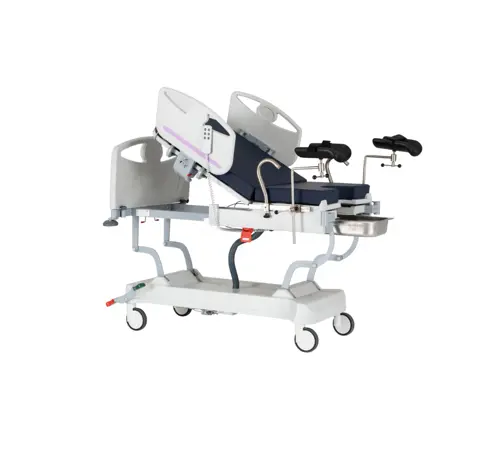

ELEGANT 5040

Electronic Sdl Birth Bed

Facts

  • 3 motors
  • Electronic headboard, height adjustments
  • Trendelenburg and Reverse Trendelenburg
  • Hand remote control
  • Anti-microbial, water proof, flame retardant, air permeable mattress
  • Removable footrest mattress
  • Stainless steel grab handles

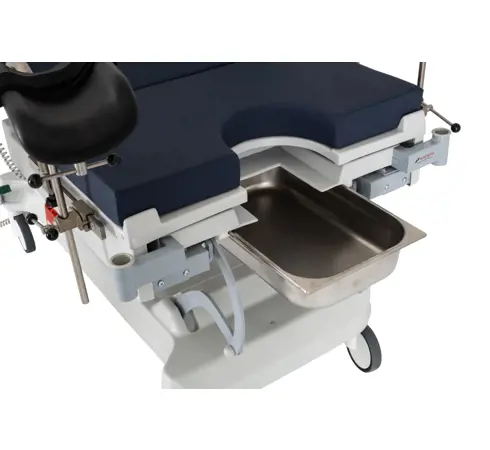

  • Stainless steel waste bin
  • Lockable, fold-away and removable PP side rails
  • Easy cleanable, lockable and detachable PP head and foot boards
  • Lockable, adjustable polyurethane leg supports
  • ABS covered sub-frame
  • Stainless steel accessory rails
  • Easily cleanable, ABS mattress platform
  • Electrostatic powder coated metal frame
  • Drainage bag hooks at both sides
  • IV pole sockets
  • Height adjustable stainless steel IV pole stand
  • Protective plastic corner bumpers

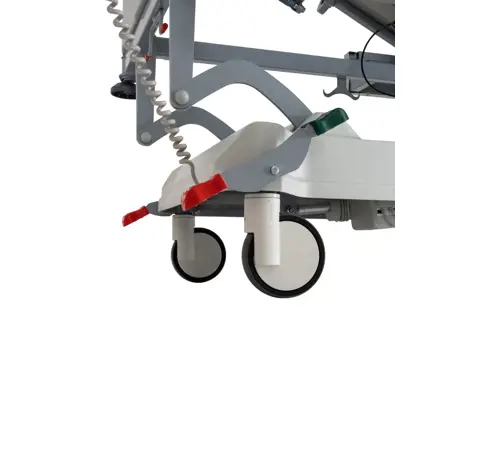

  • Central lockable single castors
Contact Us
Share on Facebook Share on Linkedin Share on Twitter
Contact Us
Technical Specifications
External Dimensions (ExB) Min. 102x153 cm
Max. 102x200 cm
Mattress Platform 85x185 cm
Backrest and Pelvic section mattress thickness 8 cm
Footboard mattress thickness 12 cm
Underbed Clearance 17,5 cm
Castor Diameter 150 mm
Mattress Platform Min. and Max. Ground Clearance Min 58 cm Max 90 cm
Maximum Backboard Angle 0° - 70°
Trend. And Reverse Trend. Angle +/- 14°
Bed Weight in Simple Bed Configuration 123 kg
Bed Safe Working Weight 240 kg
Power In Max. 3,15A 100V-240V~50/60 Hz
Electrical Shock Protection Class I, Type B
Liquid Ingress Protection IPx66

Optional Accessories
Accessory trolley (A 9025)
Support handles
Battery
Foot control pedal
Manual CPR
X-ray cassette holder on the back
Central lockable twin castors (150 mm)
