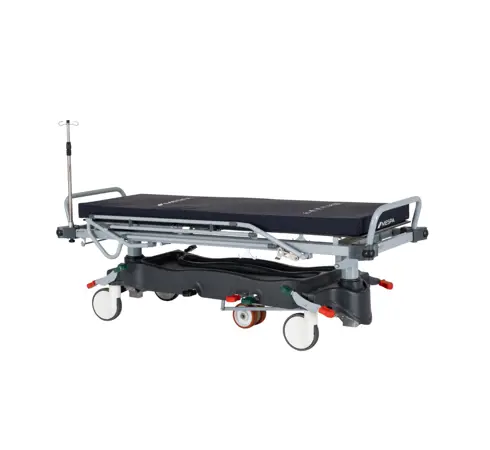

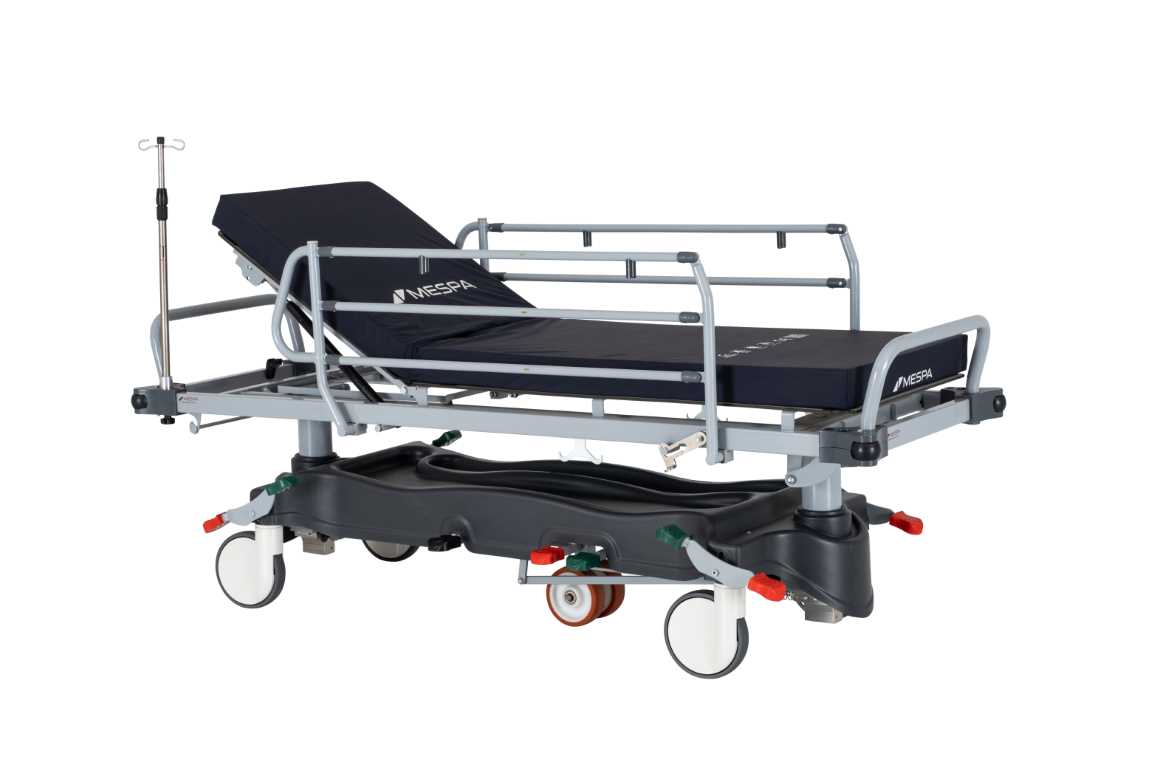

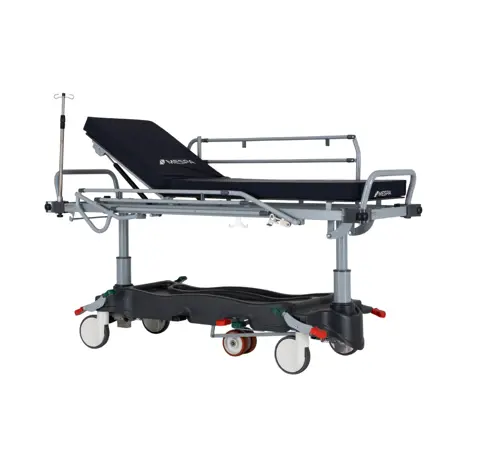

VELO ADVANCE

Functional Emergency Stretcher

Facts

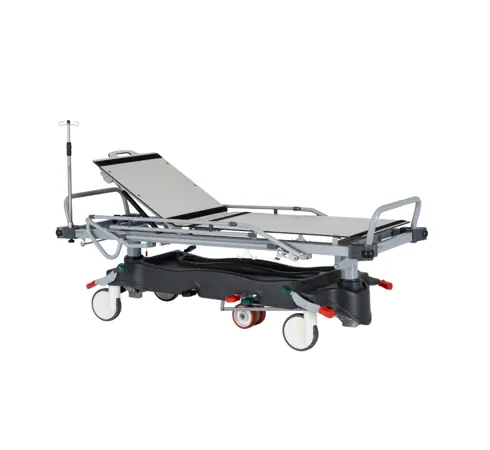

  • Full length X-ray translucent mattress platform
  • Possibility of X-ray examination on the stretcher by C-Arm machine on stretcher surface
  • Telescopic hydraulic columns
  • Hydraulic height adjustment

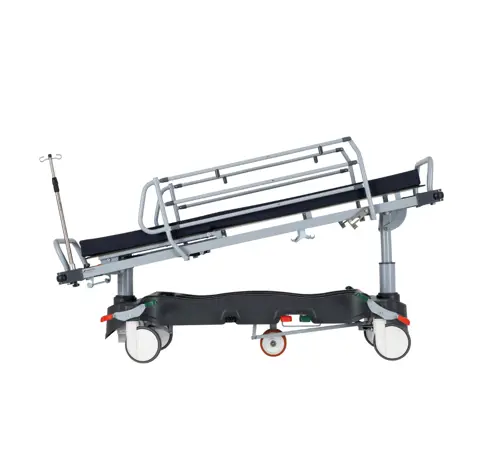

  • Trendelenburg

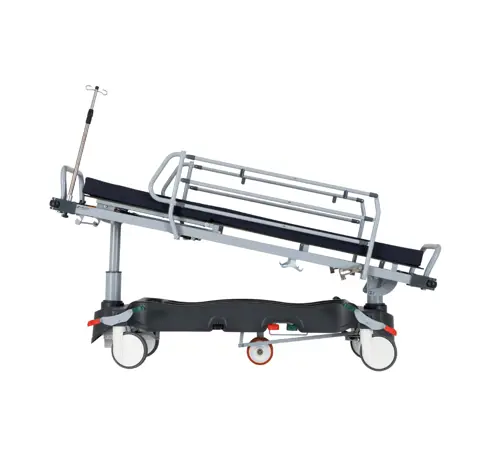

  • Reverse Trendelenburg

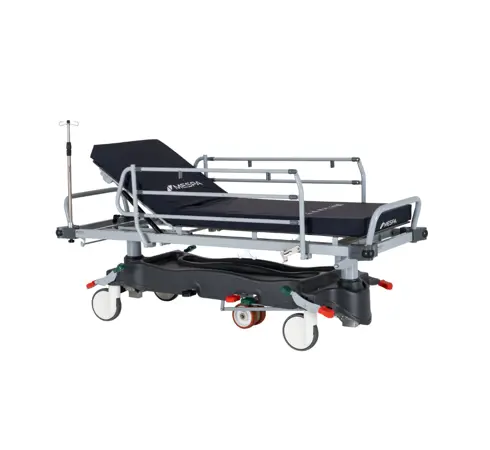

  • Gas spring assisted backrest adjustment
  • Telescopic IV pole stand

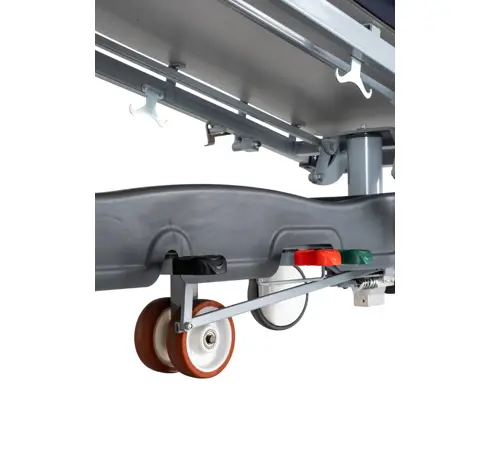

  • 5th castor for easy maneuvering
  • Anti-microbial, water-proof, air-permeable, flame-retardant mattress
  • Foldable one-piece railing system with safety lock
  • Detachable pushing bars
  • Easily cleanable, compact laminate two-section mattress platform
  • 4 units of IV pole sockets and accessory sockets
  • Drainage bag holders and accessory hooks
  • Undercarriage compartment for folders and belongings of the patients
  • High stability; fast maneuverability (no rollover risk)
  • Oxygen cylinder holder in the sub-frame
Technical Specifications
External Dimensions (ExB): 213x72 cm
Mattress Platform: 60x190 cm
Mattress Thickness: 8 cm
Matters Platform(Min/Max): 58-90 cm

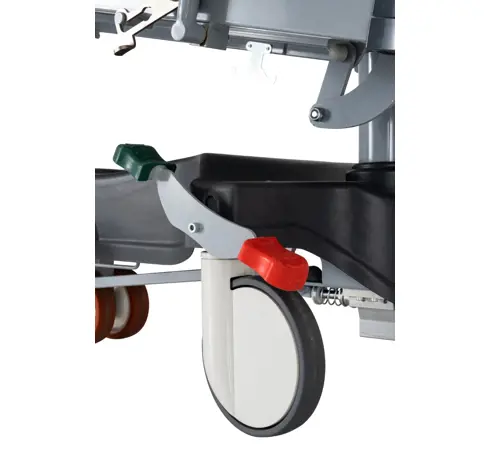

Castor Diameter: 200 mm
Maximum Backboard Angle: 0° - 70°
Bed Safe Working Weight: 250 kg
Maximum Patient Weight: 185 Kg
Trendelenburg Angle: +/- 12°
Optional Accessories
Food Table
Safety Belt
Oxygen Cylinder Carrier
Paper Roll Hanger
Monitor Stand
File Holder
