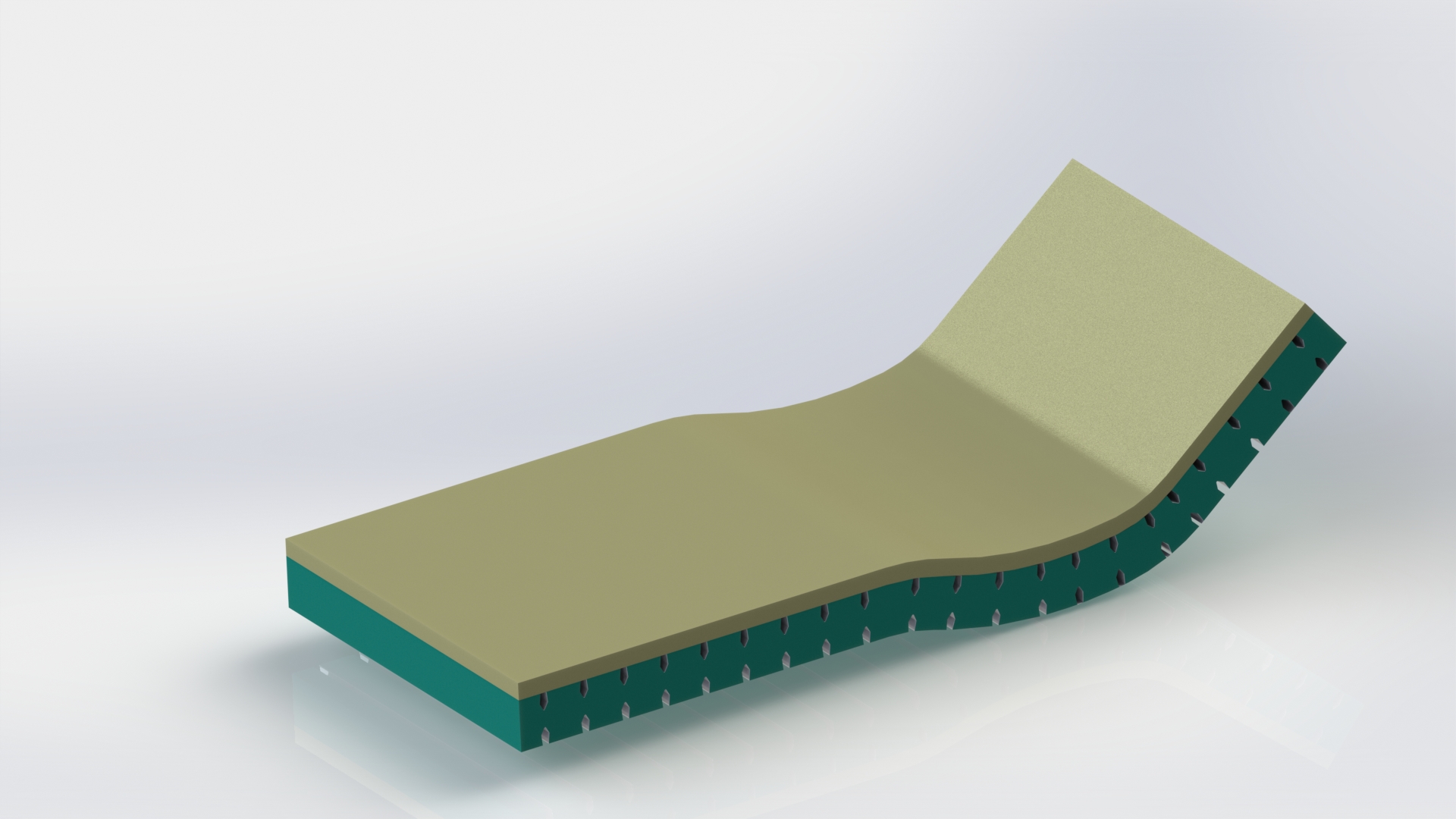

MS2210

VISCOELASTIC

Facts

  • Its design is suitable for the body structure, ensuring the even distribution of the user's weight on the bed and helping the patient to move easily.
  • Adapts to patient bedsteads thanks to its elastic structure.
  • Prevents sweating thanks to its special air-ducted structure created by CNC cutting.
  • Balances body pressure thanks to its unique structure that prevents decubitus.
  • Offers an advanced decubitus prevention/pressure relief foam mattress.
  • Its Visco elastic, heat-sensitive upper layer is 50 kg/m3, while the lower layer combines 28 kg/m3 of specially shaped cold foam.
  • In addition to preventing decubitus, the upper layer provides patient comfort because it adapts to the body shape, reacts to body temperature, and absorbs body heat.
  • The substrate forms a support surface with pressure-reducing properties and is shaped according to the human body shape for extra anatomical support.
  • It is compatible with a moveable bedstead and is formed by combining the viscoelastic lying surface and the high-density bottom surface.
  • A heat- and weight-sensitive viscoelastic material is used on the reclining surface.
  • The high-density filling material on the bottom surface facilitates weight distribution thanks to its variable structure and also prevents heat accumulation in the user's body thcanks to air passages.
  • The mattress cover is made of PU polyurethane and anti-bacterial liquid-proof, air-permeable, flame-resistant fabric.
  • The mattress cover can be washed at a max of 85°C and sterilized by autoclave.
  • The mattress cover consists of a one-piece flap zipper at the length and the top for easy removal.
  • The polyurethane mattress cover is antibacterial, liquid-proof, and breathable. It has an anti-decubitus feature, preventing sweating and the formation of decubitus wounds in patients who lie down for a long time.
  • The warranty period is 2 years, while the service life is 10 years.
  • It should not be approached with a cutting tool. It should not be used near burning products.
  • Please do not use highly alkaline or acidic agents for cleaning the product.
Technical Specifications

VISCOELASTIC SPONGE TECHNICAL SPECIFICATIONS

Fabric

100% polyester

85 g/m2

Covering

100% PU

115 g/m2

Total

 

200 g/m2 (±10 g/m2)

Tensile strength

Norm

EN ISO 1421

 

Warp

>20D/5cm

 

Weft

>10D/5cm

Elongation

Norm

EN ISO 1421

 

Warp

> %55

 

Weft

> %120

hydrostatic head

Norm

EN 20811

 

 

>2000 mm

Hydrolysis According to Forest Test

after 3 weeks: no loss of quality

TREATABLE

Fire Resistant

BS 7175

Crib 5

merkezeksbel

Antifungal

durable

Cleaned - ASTM G 21-96

ATCC #6538 (Staphylococcus aureus)

ATCC #4352 (Klebsiella pneumonia)

ATCC #6538 (Escherichia Coli)

Water Vapor Permeability

(in compliance with the relevant standard)

800 g/m2- 24 hours at 32°C

ASTM G 96*66

Shrinkage in washing at 95 oC

No more than 5

<2.00%

Resistance to disinfectants

denatured alcohol

Okay

ISO 5077

 

Fugaten Spray

Okay

90% Alcohol + 90% Ether

Conditions of Use 

 

 

Ethanol 70% (608 g/l)

Temperature

+5°/+40°

 Other

Olive oil 7 (g/l) 5 min. contact

 Relative Humidity

%20°/%80 °

 TSE-K 341

HAJJ Reocid, Dettoll, Lyorthol

Cleaning Instructions



 





 

Optional Accessories

Viscoelastic Sponge Test Information

PRODUCT NAME

DENSITY

HARDNESS IFD

TENSILE RUPTURE

TEARING UP

PERMANENT

F 25%

F 40%

F 65%

STRENGTH

STRENGTH

DEFORMATION

Standard

ISO 845

ISO 2439

ASTM D 3574

ASTM D 3574

ISO 1856

Unit

kg/m3

kPa

N/cm

VISCO SPONGE

40VE-40

40±3

20±%15

40±%15

65±%15

≥90

≥5

Max 2

50VE-50

50±4

30±%15

50±%15

80±%15

≥50

≥5

Max 2

60VE-60

60±4

35±%15

60±%15

115±%15

≥70

≥5

Max 3

80V-70

80±4

50±%15

70±%15

135±%15

≥100

≥7

Max 3

40PE-45

40±3

35±%15

45±%15

70±%15

≥50

≥4

Max 3

50PE-50

50±4

40±%15

50±%15

75±%15

≥60

≥4

Max 3

MODEL CODE

MATTRESS DIMENSIONS

MS 2201

60*190*8 cm(V3+S5 CM)

MS 2202

85*195*14 cm(V4+S10CM)

MS 2203

60*190*8 cm(V3+S5 CM)

MS 2204

85*195*12 cm(V3+S9 CM)
