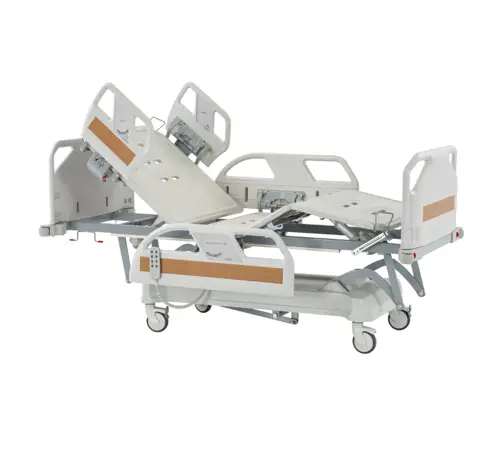

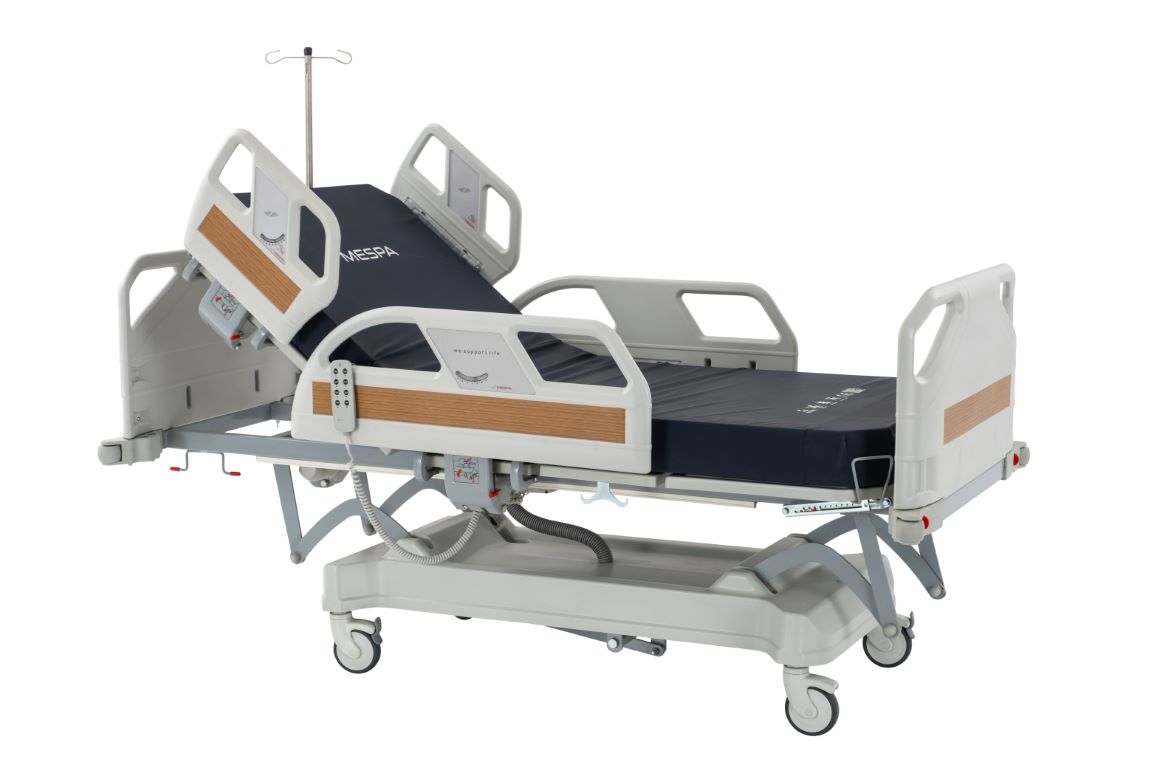

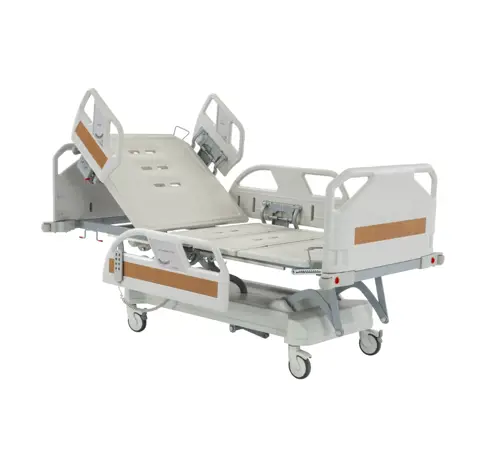

NG 5010 PLUS

Electronic Intensive Care And Service Bed 4 Motors

Facts

  • 4 motors
  • Electronic adjustments of headboard, footboard, height
  • Trendelenburg and Reverse Trendelenburg
  • Fowler, Vascular, Cardiac, Auto-contour
  • 2 nurse control panels
  • 2 patient control panels
  • Function button to prevent unauthorized use
  • Backrest adjustment and Trendelenburg position angle indicator
  • Backrest and footboard sliding system
  • Lockable and fold-away PP side rails
  • Lockable and detachable PP headboard and footboard panels
  • 4 section, detachable ABS mattress platform
  • ABS covered sub-frame
  • Electrostatic powder coated metal frame
  • Gradually adjustable footboard
  • Drainage bag hooks at both sides
  • IV pole sockets on four corners
  • Height adjustable stainless steel IV pole stand
  • Protective plastic corner bumpers
  • Electronic CPR
  • Underbed illumination
Contact Us

Product Positions

Backrest

Cardiac Position

Fowler Position

Height Adjustments

Legrest

Reverse Trendelenburg

Trendelenburg

Vascular Position



Technical Specifications
External Dimensions 216x100 cm
Mattress Platform 85x195 cm
Bed length extender (Optional) 20 cm
Maximum Mattress Height 12 cm
Underbed Clearance Min 44 cm - Maks 84 cm (±1 cm)
Castor Diameter 125 mm
Mattress Platform Min. and Max. Ground Clearance Min 44 cm Maks 84 cm (±1 cm)
Maximum Backboard Angle 0° - 70°
Maximum Footboard Angle 0° - 40°
Trend. And Reverse Trend. Angle +/- 16°
Bed Weight in Simple Bed Configuration 114 kg
Bed Safe Working Weight 250 kg
Grab Handle Safe Working Weight 70 kg
Maximum Patient Weight 185 Kg
Power In Max. 3,15A 100V-240V~50/60 Hz
Electrical Shock Protection Class I, Type B
Liquid Ingress Protection IPx66

Castor Diameter: 125 mm - 150 mm

Optional Accessories
Oxygen cylinder carrier
File holder
Support handles
Monitor stand
Battery
Footboard nurse control panel
Manual CPR on the back
Linen holder
Bed length extender
X-ray cassette holder on the back
Central lockable castors
