MCARE CL

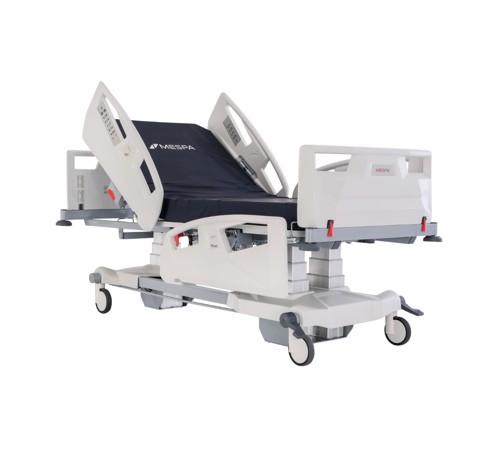

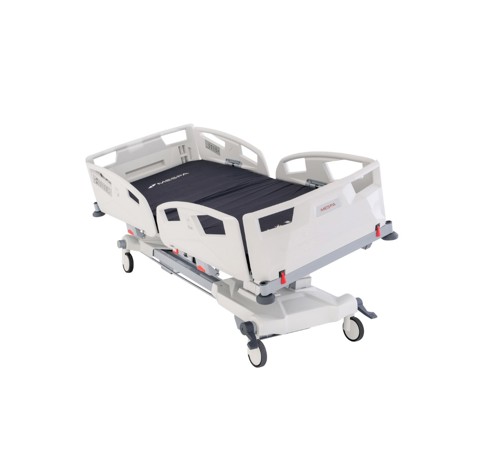

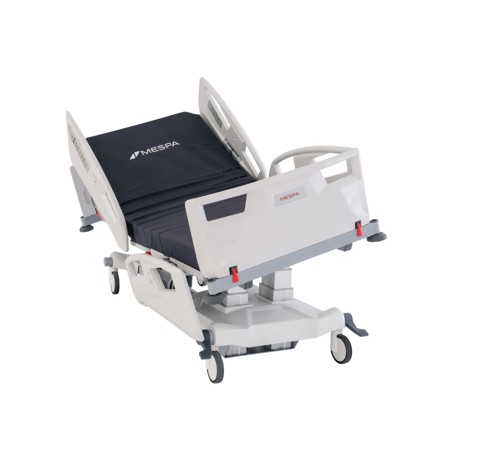

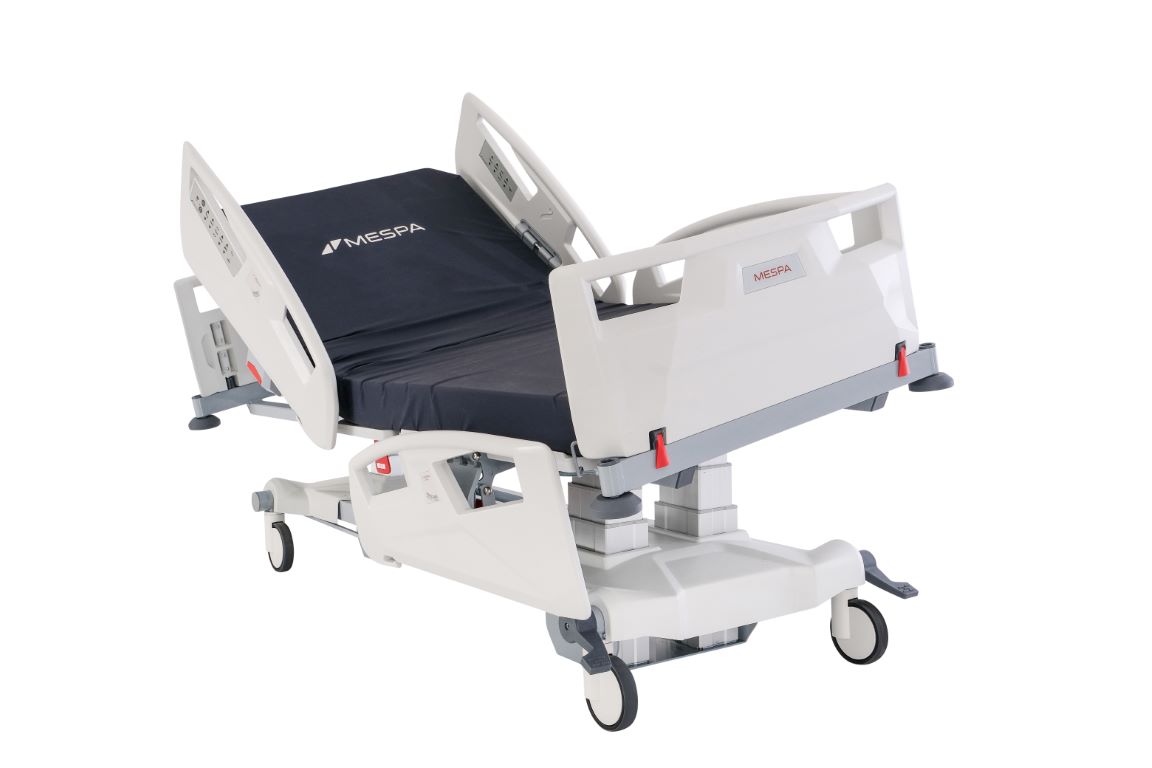

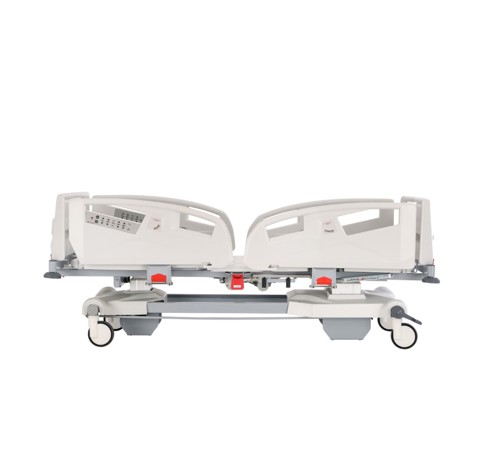

Tilt Three Column Electronic Bed Motorized Scale

Facts

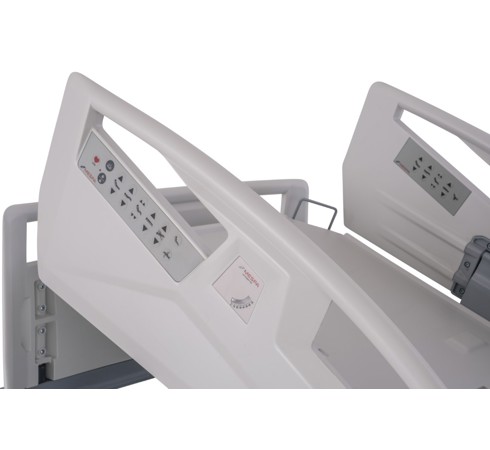

  • Hand remote control
  • Electronic adjustments of backboard, footboard and height
  • Fowler, Vascular, Trendelenburg, Reverse Trendelenburg, Cardiac, Auto-contour, Examination, Emergency positions
  • Manual CPR on the back
  • Lockable and fold-away PP side rails

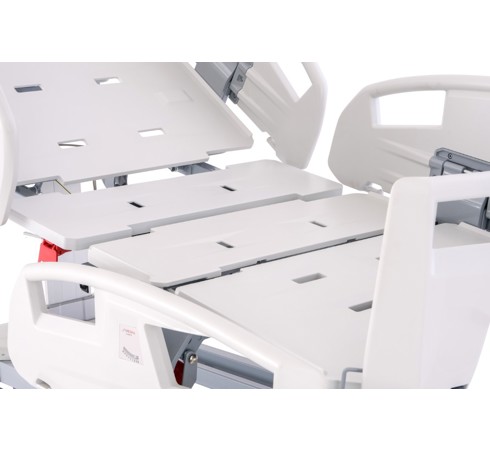

  • 4 section, detachable and easy cleanable PP mattress platform
  • Lockable and detachable headboard and footboard panels
  • Protective plastic corner bumpers
  • Easy adjustable footboard support
  • Electrostatic powder coated metal frame
  • Angle indicator
  • Mattress holder
  • Detachable drainage hanger
  • Height adjustable stainless steel IV pole with 4 hooks
  • IV pole sockets on four corners
  • Lockable single castors
  • Antistatic grounding
Contact Us

Product Positions

Backrest

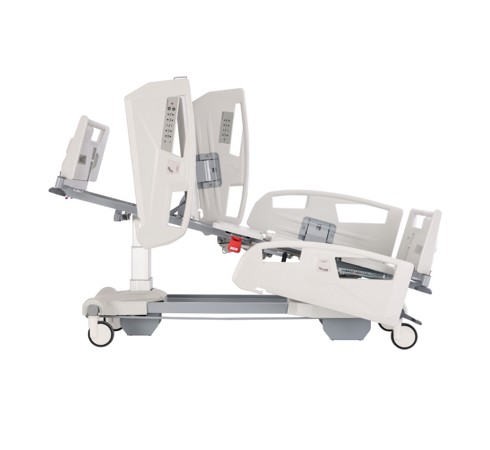

Cardiac Position

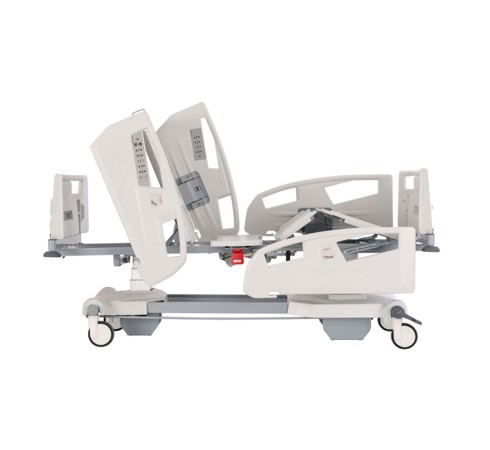

Fowler Position

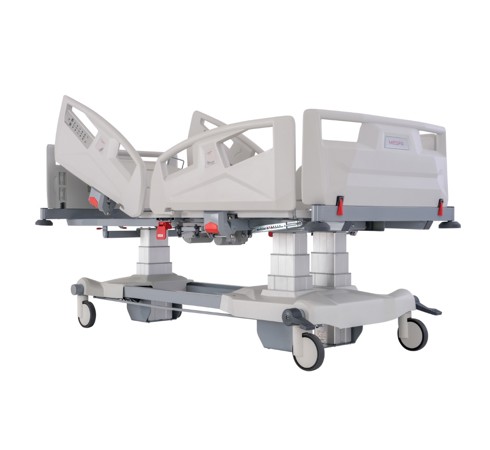

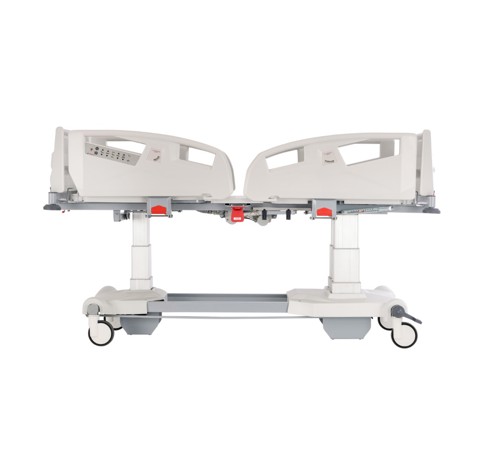

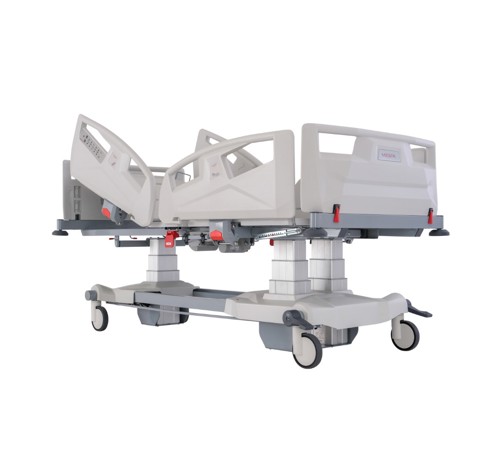

Height Adjustments

Lateral Position 1

Lateral Position 2

Legrest

Reverse Trendelenburg

Trendelenburg

Vascular Position



Technical Specifications
External Dimensions (ExB) 222x100 cm
Mattress Platform 195x85 cm
Maximum Mattress Height 12 cm
Underbed Clearance 17 cm
Castor Diameter 125mm-150 mm
Mattress Platform Min. and Max. Ground Clearance Min. 44 cm Max. 82 cm (±1 cm)
Maximum Backboard Angle 0° - 70°
Maximum Footboard Angle 0° - 40°
Trend. And Reverse Trend. Angle +/- 16°
Bed Weight in Simple Bed Configuration 122 kg
Bed Safe Working Weight 250 kg
Grab Handle Safe Working Weight 70 kg
Maximum Patient Weight 185 Kg
Power In Max. 3,15A100V-240V~50/60 Hz
Electrical Shock Protection Class I, Type B
Liquid Ingress Protection IPx66
Optional Accessories
Battery
Manual CPR
Oxygen cylinder carrier
Grab handle
Monitor stand
Cassette holder on the back
File holder
Foot Pedal
Traction set
Central lock
Domestic castor
Bed length extender

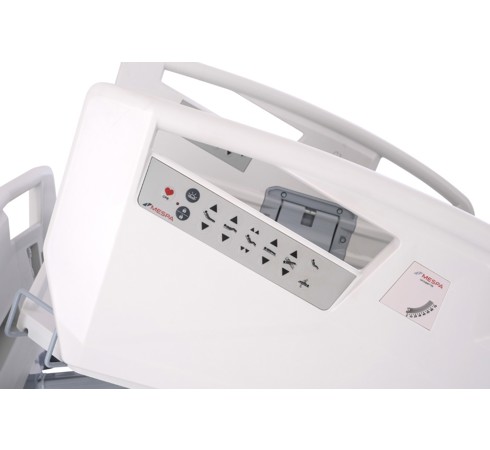

Footboard nurse control panel
HPL mattress surface
HPL mattress surface
Metal mattress surface
Backboard HPL
Folding Metal Railing
5 castor
