NG 5010 MODIFY X

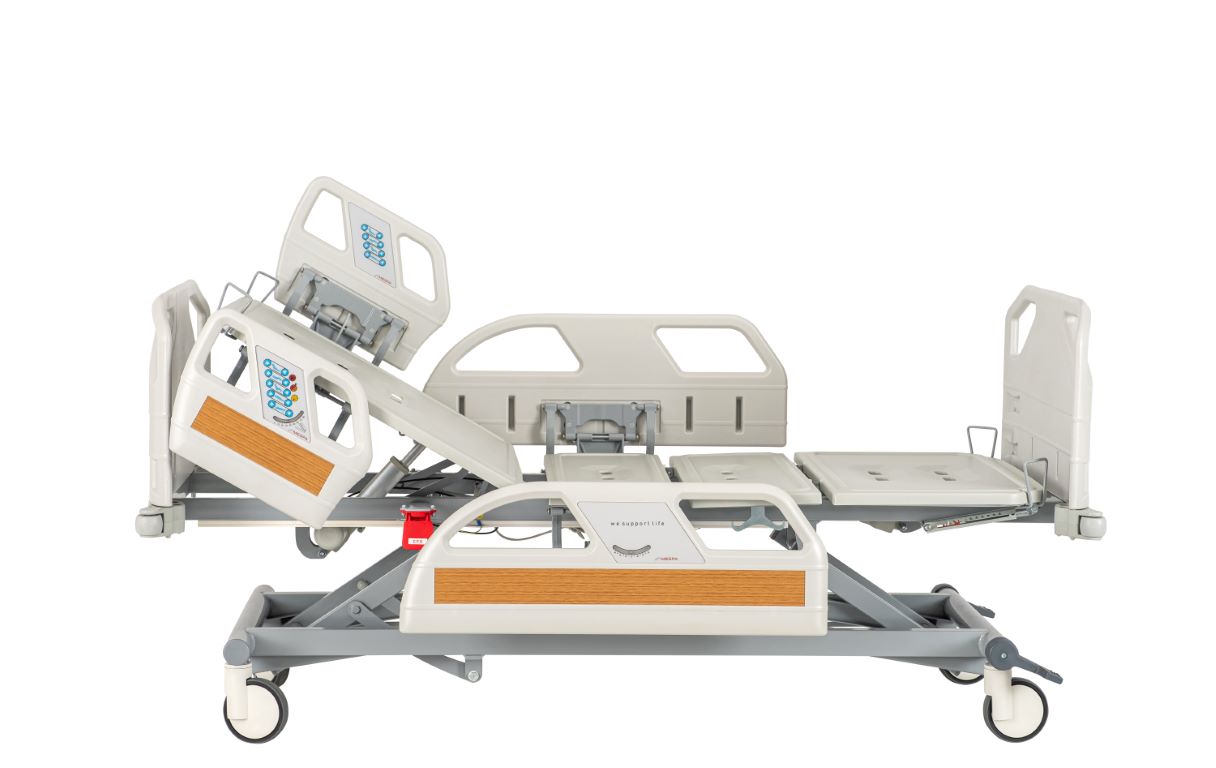

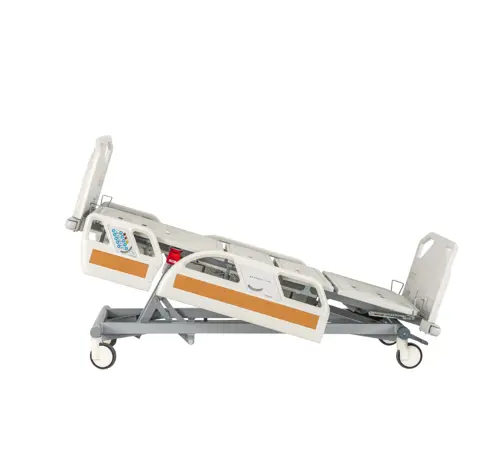

Electronic Intensive Care And Service Bed 4 Motors

Facts

  • Electronic bedside table, footrest, height settings
  • Trendelenburg and Reverse Trendelenburg
  • Fowler, Vascular, Cardiac
  • Auto-contour
  • Unauthorized üşe prevention function key
  • Back adjustment and Trendelenburg position angle
  • indicator
  • Back and footrest sliding system
  • Electro nic CPR

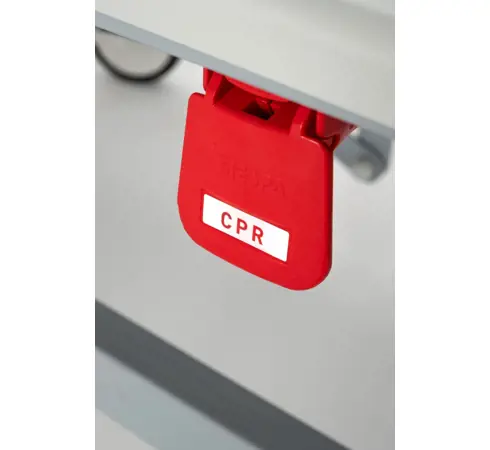

  • Manual CPR on the Back
  • Lockable and concealable PP side railings
  • Lockable and removable bedside and footrest panels
  • Inflatable mattress platform with 4-compartment
  • removable PP double wall
  • Metal housing with electrostatic powder coating
  • Footrest that can be adjusted gradually
  • Urine bag hook on both sides
  • Serum sling slots in the four comers
  • Height adjustable stainless Steel serum stand
  • The back pan is X-Ray permeable
  • Protective plastic corner bumpers
  • Central lockable wheels
  • Cross lockable wheels
  • 4-way overhead lock





   VARIATIONS



  • Bed length extension
  •  Foot Nurse Control Panel
  •  HPL reclining surface
  •  HPL reclining surface
  •  Metal reclining surface
  •  HPL back part
  •  Folding Metal Railing
  •  5Vheeı
Contact Us

Product Positions

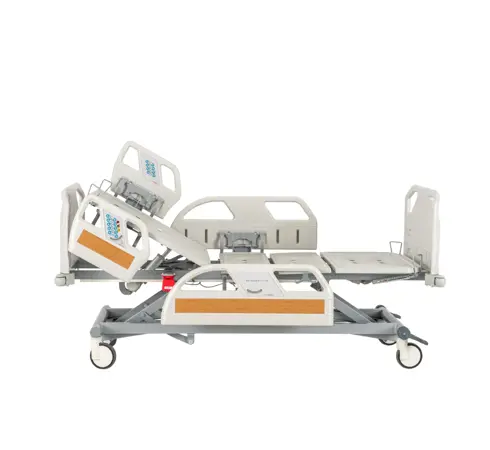

Backrest

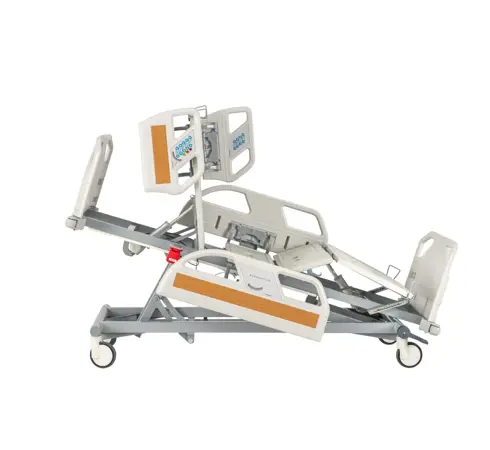

Cardiac Position

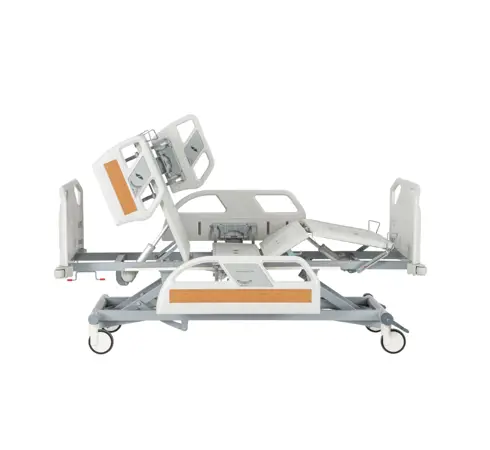

Fowler Position

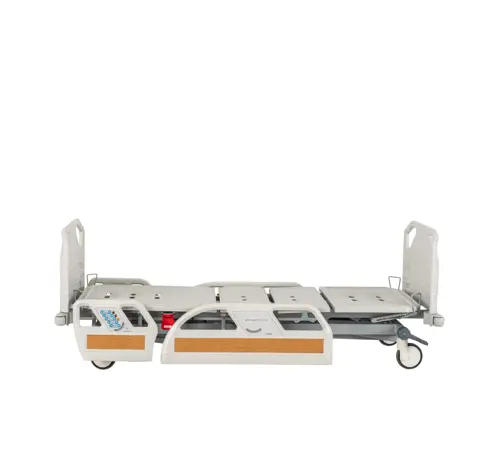

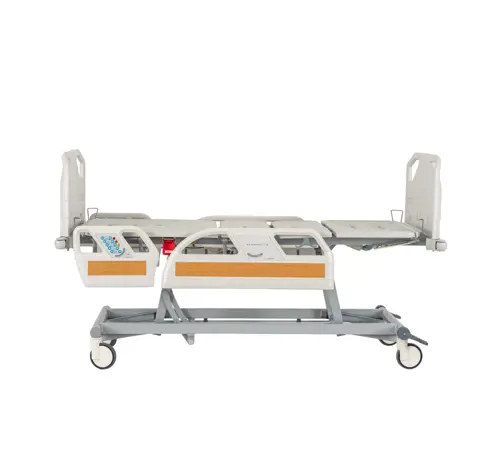

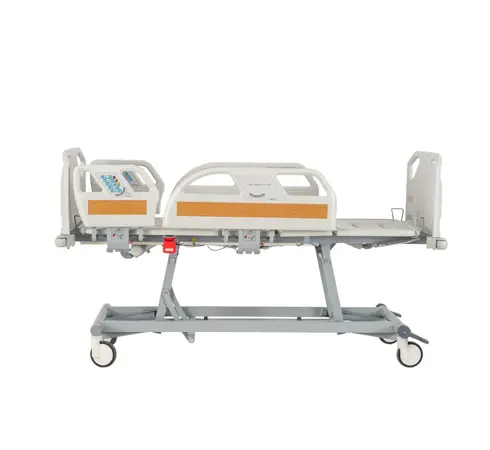

Height Adjustments

Legrest

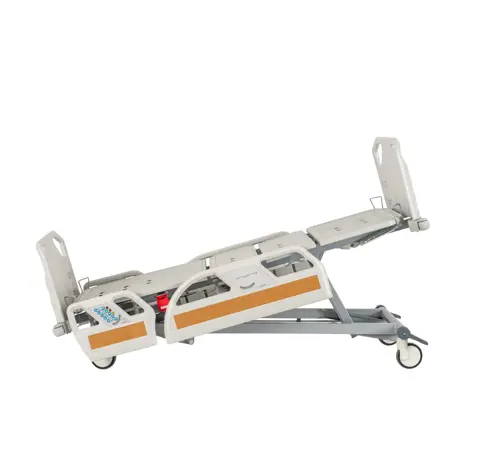

Reverse Trendelenburg

Trendelenburg

Vascular Position



Technical Specifications
External Dimensions (WxL) 216x100 cm
Mattress Platform 85x195 cm
Maximum Mattress Height 12 cm
Mattress Platform Min. and Max. Ground Clearance Min 44 cm - Maks 77,5 cm (±1 cm)
Wheel Diameter 125mm-150mm
Min. and Max. Height of Mattress Platform from Floor Min 44cm Max 77.5cm (±1 cm)
Maximum Back Part Angle  0° - 70°
Maximum Footrest Angle 0° - 40° 
Trendelenburg and Reverse Trendelenburg Angle +/- 16°
Grab Bar Safe Working Weight 70 kg
Maximum Patient Weight 185 Kg
Power Input Max. 3.15A 100V-240V~50/60 Hz
Protection Against Electric Shock Class I, Type B
Protection Against Water Infiltration IPx66
Castor Diameter: 125 mm - 150 mm

Optional Accessories
Battery
Manual CPR
Oxygen Tube Carrier
Holding handle
Monitor Stand
Cassette slot on the back
File Holder
Foot Pedal
Traction set
Central lock
Domestic wheel
