MS 1022
Manual Patient Bed
Facts
- Manual adjustments of headboard, footboard, height
- Fowler, Vascular
- Fold-away side rails
- Lockable and detachable PP headboard and footboard panels
- 4 section mattress platform
- Electrostatic powder coated metal frame
- Drainage bag hooks at both sides
- Gradually adjustable footboard
- IV pole sockets
- Height adjustable stainless steel IV pole stand
- Protective plastic corner bumpers
- Foldable legs
- Lockable castors

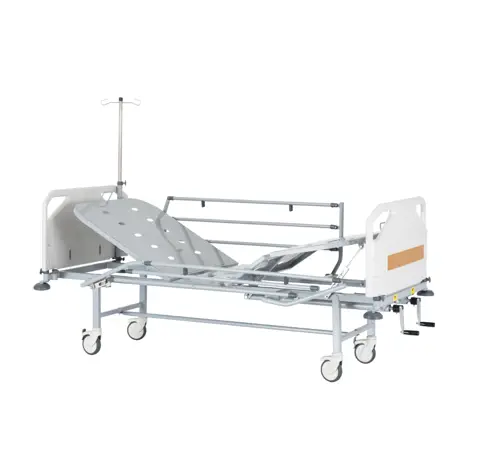

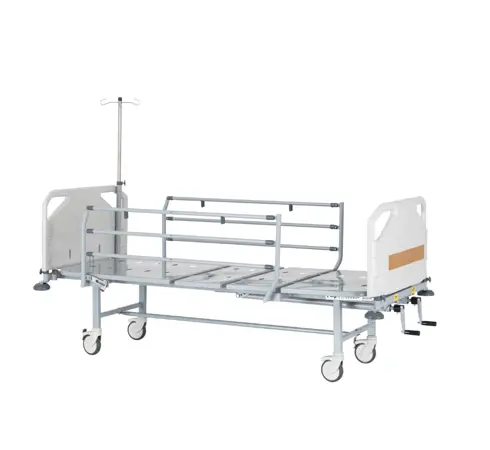

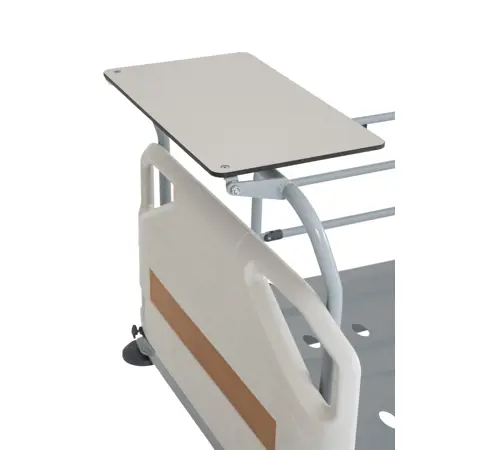

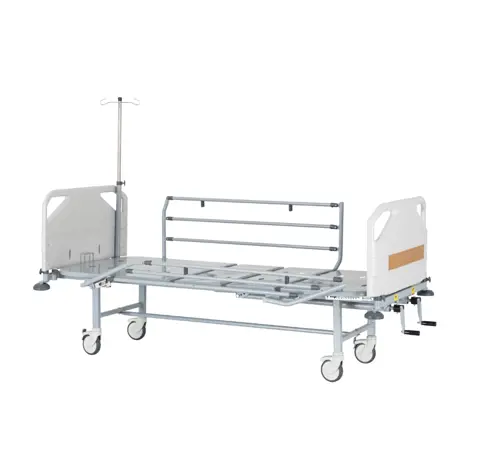

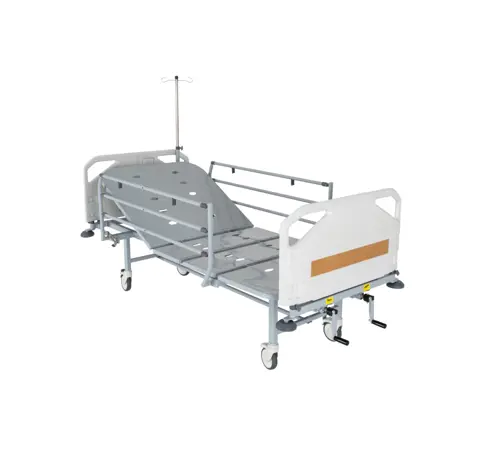

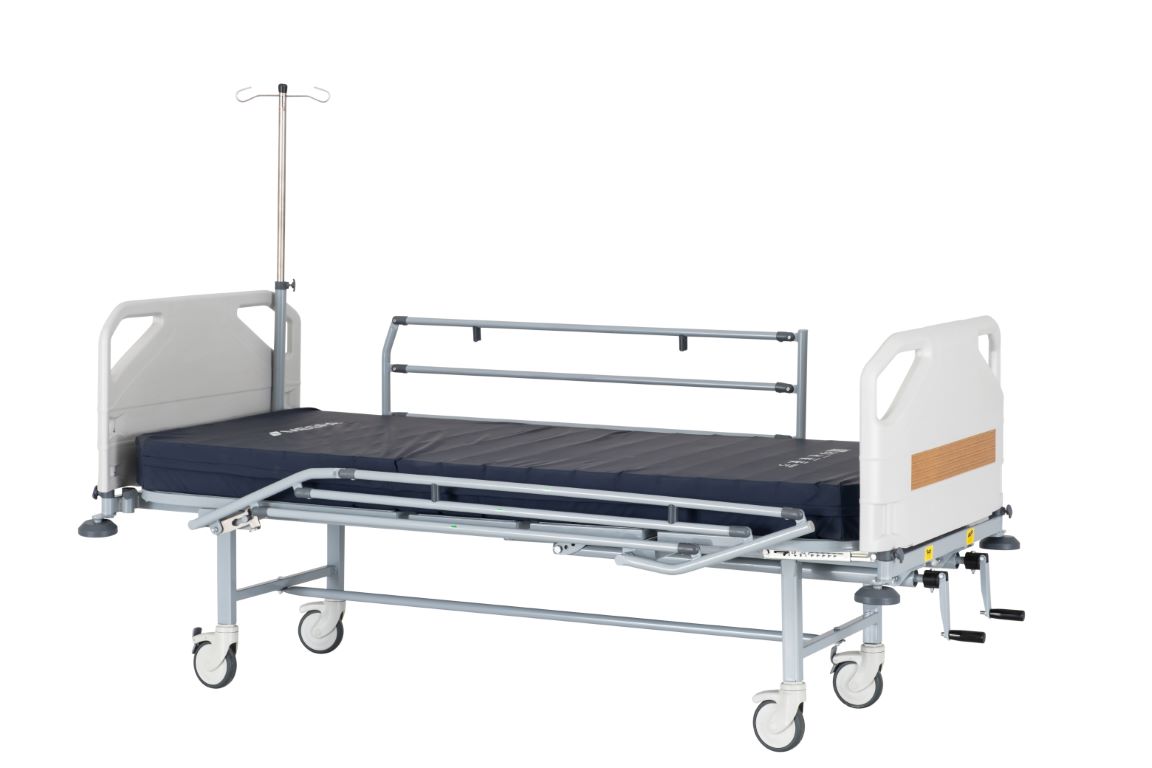

Product Gallery
Technical Specifications
External Dimensions 214x98 cm
Mattress Platform 195x85x cm
Maximum Mattress Height 12 cm
Underbed Clearance 20 cm
Castor Diameter 125 mm
Mattress Platform Ground Clearance 50 cm
Maximum Backboard Angle 0° - 70°
Maximum Footboard Angle 0° - 40°
Bed Safe Working Weight 250 kg
Grab Handle Safe Working Weight 70 kg
Lifting Pole Safe Working Weight: 70 kg
Optional Accessories
Oxygen cylinder carrier
File holder
Support handles
Orthopedic traction system
