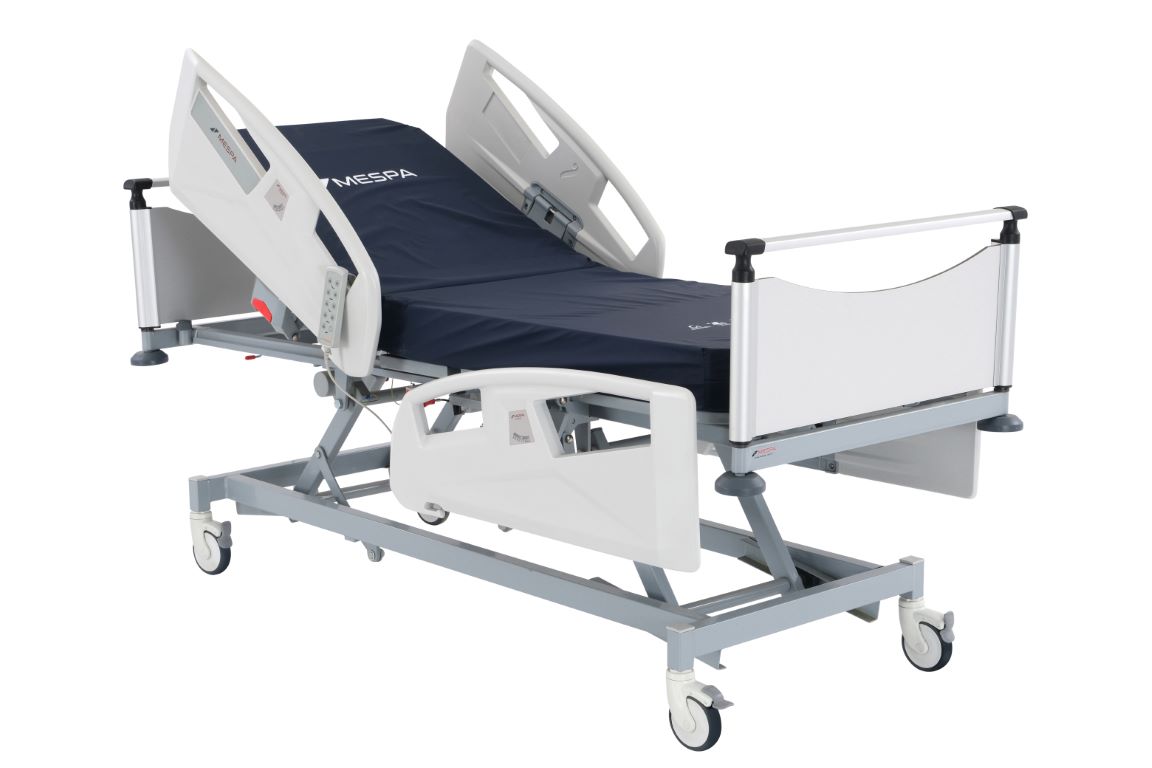

MCARE 7004

Electronic Bed 4 Motors

Facts

  • 4 motors
  • Electronic adjustments of headboard, footboard, height
  • Trendelenburg and Reverse Trendelenburg
  • Fowler, Vascular, Cardiac
  • Auto-contour
  • Backrest adjustment and Trendelenburg position angle indicator
  • Backrest and footboard sliding system
  • Electronic CPR
  • Manual CPR on the back
  • Lockable and fold-away PP side rails
  • Detachable headboard and footboard HPL panels

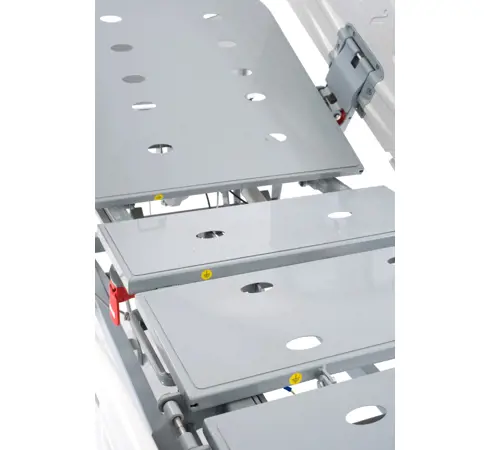

  • HPL Mattress platform
  • Metal Mattress platform
  • Electrostatic powder coated metal frame
  • Gradually adjustable footboard
  • Drainage bag hooks at both sides
  • IV pole sockets on four corners
  • Height adjustable stainless steel IV pole stand
  • X-Ray transmittance of the back if the surface is HPL
  • Protective plastic corner bumpers
  • Central lockable castors
  • Cross lockable castors
Contact Us

Product Positions

Backrest

Cardiac Position

Fowler Position

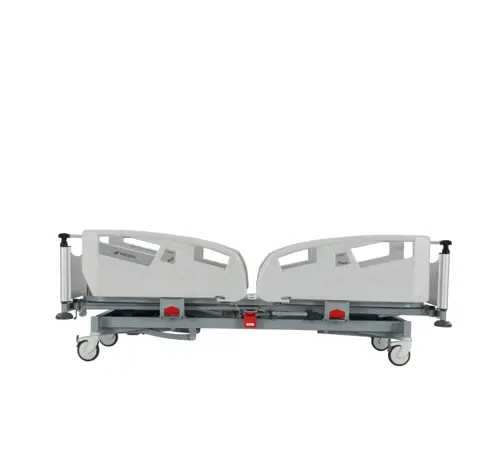

Height Adjustments

Legrest

Reverse Trendelenburg

Trendelenburg

Vascular Position



Technical Specifications
External Dimensions (ExB) 220x85 cm
Mattress Platform 195x70 cm
Maximum Mattress Height 12 cm
Underbed Clearance 17 cm
Castor Diameter 125mm-150 mm
Mattress Platform Min. and Max. Ground Clearance Min 35 cm Max 76 cm (±1 cm)
Maximum Backboard Angle 0° - 70°
Maximum Footboard Angle 0° - 40°
Trend. And Reverse Trend. Angle +/- 16°
Bed Weight in Simple Bed Configuration
Bed Safe Working Weight 250 kg
Grab Handle Safe Working Weight 70 kg
Maximum Patient Weight 185 Kg
Power In Max. 3,15A 100V-240V~50/60 Hz
Electrical Shock Protection Class I, Type B
Liquid Ingress Protection IPx66
Castor Diameter: 125 mm - 150 mm
Lifting Pole Safe Working Weight: 70 kg
Optional Accessories
Battery
Manual CPR
Bed length extender
Oxygen cylinder carrier
Grab handle
Monitor stand
Cassette holder on the back
File holder
Foot Pedal
Traction set
Central lock
Domestic castor
Nurse control panel
Integrate control panel
Bed length extender
Footboard nurse control panel
HPL mattress surface
HPL mattress surface
Metal mattress surface
Backboard HPL
Folding Metal Railing
5 castor
